The Chuck Box

I’ve finally reinstalled my door to the workroom and put up the wall board. Other household chores now demand my attention as well but in the back of my mind is the chuck box, my boat kitchen. I’ve began some initial design sketches and after a while had to pause and figure out the box’s exact purpose. Most chuck boxes are large wooden boxes with configurations so a person can stand at the box with attached legs and cook their meals. They are also the sort to be carried by two people to a vehicle. There are many styles that can be found on the web, and they are well designed for the purpose their intended, however... Mine is a little different. I need my chuck box to be suited for use on Pikake or other small boat.

What it needs to do;

·Compact in height in order to fit under the deck, and be able to set up in the boat.

· Light enough for me to lift it over the side of my boat and hand off to a shipmate.

· Able to carry all the equipment needed for a camp kitchen such as the stove, dinnerware, utensils, pots/pans and cleaning gear.

· Able to have shelves fold out or attach to sides and serve as a small table.

· Rubber feet to prevent box from sliding on a wet surface.

· Weather resistant, not necessarily water proof.

The design has gone through some changes already with the removal of pockets for attachable legs. Whether on the boat or beach, having the box at a standing working height is not a necessity for me, as long as it’s not right on the ground. This saves weight and some space. One of my most important decisions was to use my trusty ole fuel powered Colman stove. I had thought of getting a new propane stove, but I really, REALLY dislike those disposable propane cylinders and their cost vs cans of fuel is high. (Just a personal thing) Sure I have to fill and pump up the pressure in order to light my stove, but it’s reliable and I know how much cooking time I have left. This stove was my starting point in the box design. Other design points included space for my kettle, pot kit and dinnerware set, all to accommodate the needs of 4+ people. The rest of the space is for everything else that can squeeze in.
Bear in mind that this box is built to suit my needs and may not at all suit other sailor/campers. It is also sized to fit under the deck my Pathfinder.

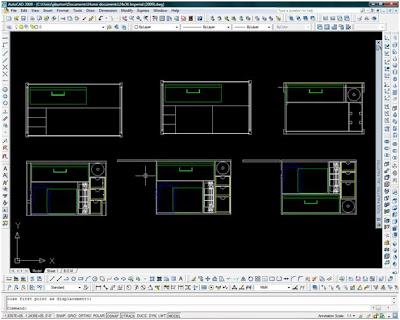

The first models changed from a large size to a smaller more compact design once I decided what would go inside the box.

I had intended to have the front and top cover to open up like a mechanics tool chest. And use the opened configuration to make a rain shelter to cover the top section where the stove sits. But knowing weather being as it is, a gust of wind would make short work of a nice wooden lid like that.

Once a general layout was figured out, how it all would fit together was the next step. What gets notched, what gets reinforcing blocks if any, and how it opens.... I don’t particularly like the way it opens but it’s all I can think up right now.

This design has again changed to a 2 drawer model since Less drawers means less weight and more can go in the larger ones. I'm still not happy with the front door arrangement but I'll figure something out.
