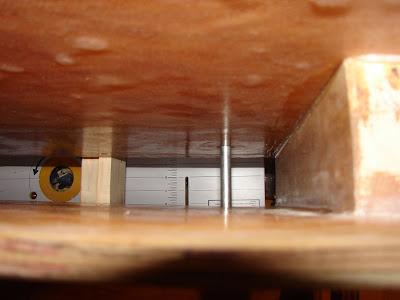

This is a view looking in the center case from above. The pic can be seen going through the two bushings (ore lock sockets) The light areas is where I sanded. Its not humps. Plus its very dusty.
This is basically how the finished arrangement will look for the pivot pin.It will get it all cleaned up and add fillets while planking and is drying.
time: 1 hr
